- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- AMX
- Product Line
- Enova
- Product Type
- Audio/Video Switchbox

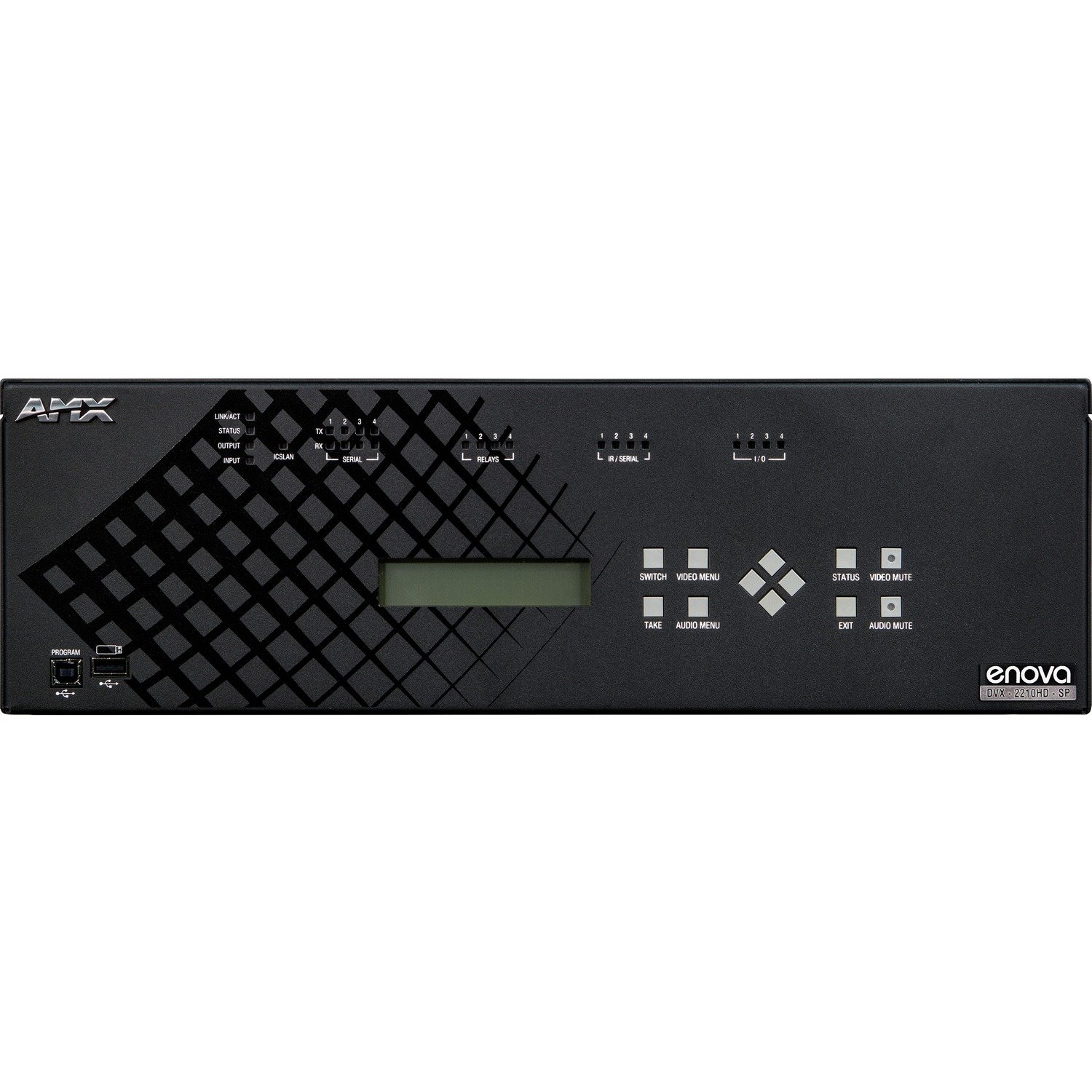

The Enova® DVX-2210HD 4x2 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces the need for numerous individual components and eliminates the integration and reliability challenges that accompany them. The compact 3U Presentation Switcher integrates a variety of different functionality, such as a scaler, analog to digital signal converter, twisted pair transmitter and amplifier with built-in professional grade audio processing into a single box. With AMX-exclusive features, the DVX-2210HD is a simple to install, flexible solution, perfectly suited for smaller conference rooms and classrooms.
The DVX-2210HD includes the next generation NetLinx Integrated Controller technology, the NX-Series. This new controller provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features.
The DVX-2210HD includes a long list of features to ensure optimal audio and video quality from virtually any source. The state-of-the-art professional grade audio DSP delivers quality audio throughout a room. The 2210HD's multi-format video inputs support analog and digital signals including HDMI with HDCP sources - all in the same connector. Built-in SmartScale® Technology outputs video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions - making the 2210HD easy to specify, easy to install and easy to use.
The Enova DVX's all-in-one architecture also delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 4
- Device Supported
- Display
- Number of Displays Supported
- 4
- Video
- Graphics Modes
- Full HD
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- DVI In
- Yes
- HDMI In
- Yes
- HDMI Out
- Yes
- Connectivity (RJ-45)
- Yes
- Number of Connectivity (RJ-45) Ports
- 3
- Number of USB Ports
- 3
- Number of HDMI Inputs
- 2
- Number of HDMI Outputs
- 2
- Number of DVI Inputs
- 2
- Media & Performance
- Maximum Operating Distance
- 328.08 ft
- Physical Characteristics
- Height
- 5.2"
- Width
- 17"
- Depth
- 14"
- Weight (Approximate)
- 17 lb
- Miscellaneous
- Package Contents
- 4x2 All-In-One Presentation Switchers with NX Control (Multi-Format,HDMI Inputs)
- 1 x Power Cord, Universal
- 1 x Commoning Strip, Cypher, 8 Pos., 3.5 mm, Phoenix Connector
- 2 x Front Rack Mounting Brackets
- 8 x #8-32 x .375 screws
- 4 x Rubber feet
- 2 x CC-NIRC, IR Emitter with 3.5mm Phoenix Connector (FG10-000-11)
- 1 x CC-DVIM-VGAF, DVI to HD-15 Female Adapter (FG10-2170-13)
- Environmentally Friendly
- Yes
- Country of Origin
- Mexico
