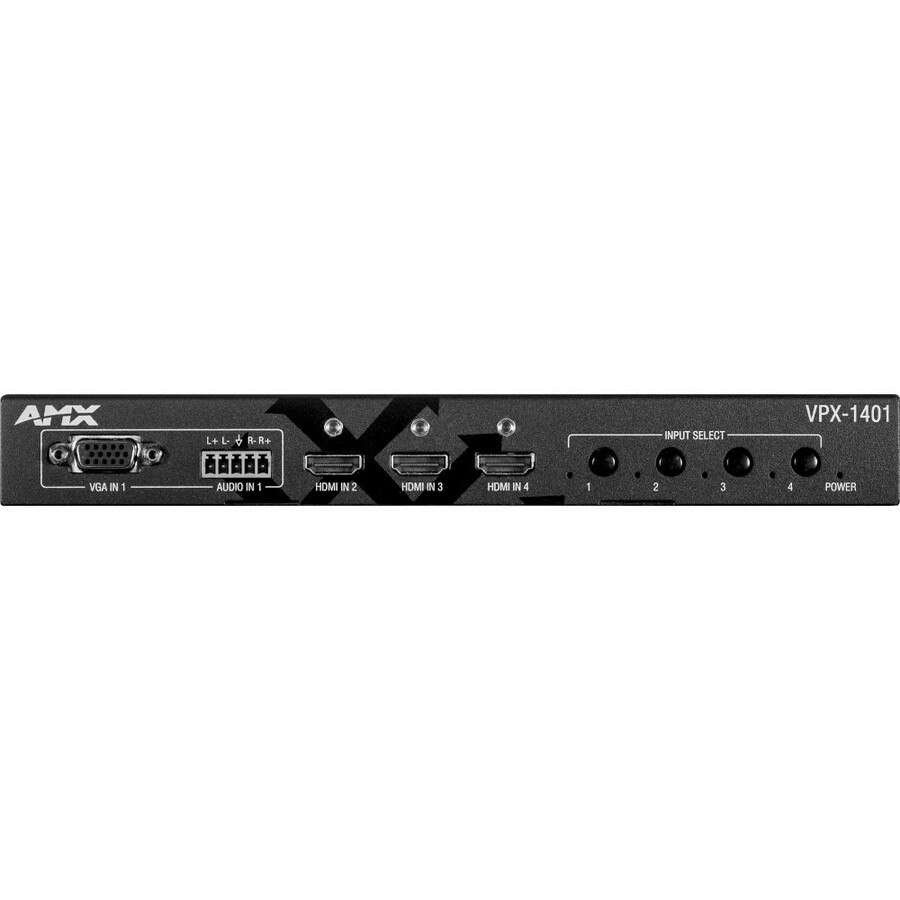

The AMX VPX-1401 is a cost effective 4x1+1 presentation switcher which supports resolutions up to 4K60 4:4:4 and offers HDCP 2.2 compatibility to support the most current sources and displays. The VPX-1401 includes 3 HDMI inputs and 1 VGA input. The VPX Series switchers include built-in scaling, allowing automatic scaling of signals to match the ideal resolution ofthe display. In addition to the HDMI output, there is also a mirrored HDBaseT output, allowing direct connection to a standard HDBaseT output on a display or connection to an AMX DXLite receiver. USB 2.0 distribution is also available over HDBaseT, allowing simplified connection to USB peripherals such as a camera mounted near the display.
There are a variety of options to control the VPX-1401 as well. Front panel controls are available, as is contact closure for use with source selector buttons. The VPX- 1401 is also NetLinx Native, allowing simplified integration with AMX automation systems.
Common Applications
Ideal for table mounting in conference rooms or for use in flipped classroom environments.
Features
- 4K60 4:4:4 Support Experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space.
- HDCP 2.2 Support Support the latest source devices.
- Mirrored HDBaseT Output Provides simultaneous support to the local HDMI output and to compatible receiving devices.
- USB 2.0 Distribution over HDBaseT Connect to USB peripherals mounted near the display.
- Front Panel Control - Simple push-button switching.
- Audio Output Extraction - Including volume control to feed amplified speakers.
- Contact Closure - Use with source selector buttons to easily switch sources between connected devices.
- NetLinx Native - Easy integration with AMX automation systems.
- Web Configuration - Provides simple user interface for setup and configuration.
- Open Control API IP controllable by any control system even directly by Zoom Rooms
- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- AMX
- Product Series
- VPX
- Product Type
- Audio/Video Switchbox
- Technical Information
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 4
- Device Supported
- Display
- Number of Displays Supported
- 2
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- VGA In
- Yes
- USB
- Yes
- Connectivity (RJ-45)
- Yes
- Number of Connectivity (RJ-45) Ports
- 2
- Number of USB Ports
- 1
- Number of HDMI Inputs
- 3
- Number of HDMI Outputs
- 1
- Number of VGA Inputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Operating Distance
- 328.08 ft
- Physical Characteristics
- Height
- 1.2"
- Width
- 9.4"
- Depth
- 7.9"
- Weight (Approximate)
- 2.98 lb
- Miscellaneous
- Package Contents
- VPX Series 4x1+1 4K60 Presentation Switcher
- V-Style Surface Mount Brackets
- 1 x US AC Cable
- 1 x 12V/5A Power Adapter
- 4 x 5P-3.5mm Phoenix Connectors
- 1 x 6P-3.5mm Phoenix Connectors
- 2 x Mounting Ears
- 4 x M2.5 Screws
