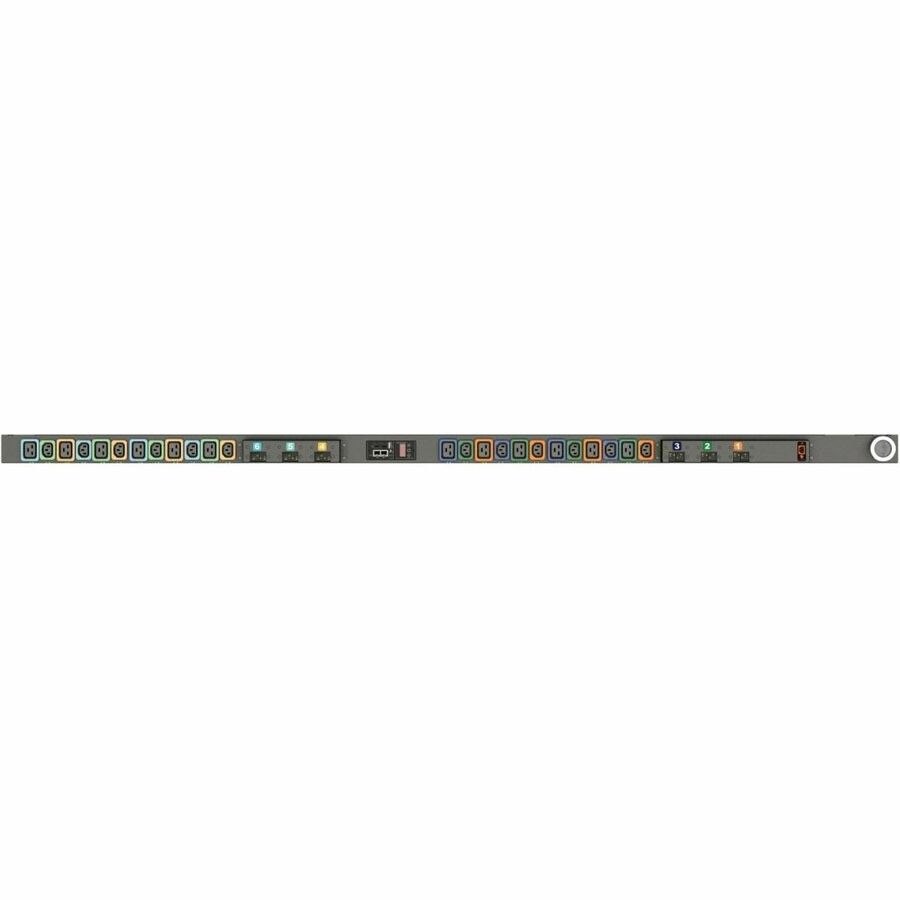

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant
- Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Series
- rPDU
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years.
- Technical Information
- PDU Type
- Monitored
- Phase
- Three Phase
- Plug/Connector Type
- IEC 60309 3P+E 60A
- Plug/Connector Detail
- 1 x IEC 60309 3P+E 60A
- Receptacle Type
- U-Lock IEC 60320 C13
- U-Lock IEC 60320 C19
- Receptacle Detail
- 12 x U-Lock IEC 60320 C13
- 12 x U-Lock IEC 60320 C19
- Protection Type
- Overcurrent Protection
- Circuit Breaker
- Double Pole
- Locking Receptacles
- IEC 60320 C13
- IEC 60320 C19
- Features
- LED Display
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 17.20 kW
- Input Current
- 60 A
- Management
- Management
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
- RS232
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Color Family
- Blue
- Product Color
- Blue
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Form Factor
- Hot-swappable
- Rack Height
- 0U
- Width
- 2.3"
- Depth
- 2.6"
- Length
- 70"
- Miscellaneous
- Package Contents
- rPDU MNR3EGW1-24PBB8-6PS15D0A10-S-A 24-Outlets PDU
- 7938 Vertical Mounting Bracket Kit
- Application/Usage
- IT Equipment
- Country of Origin
- United States
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
