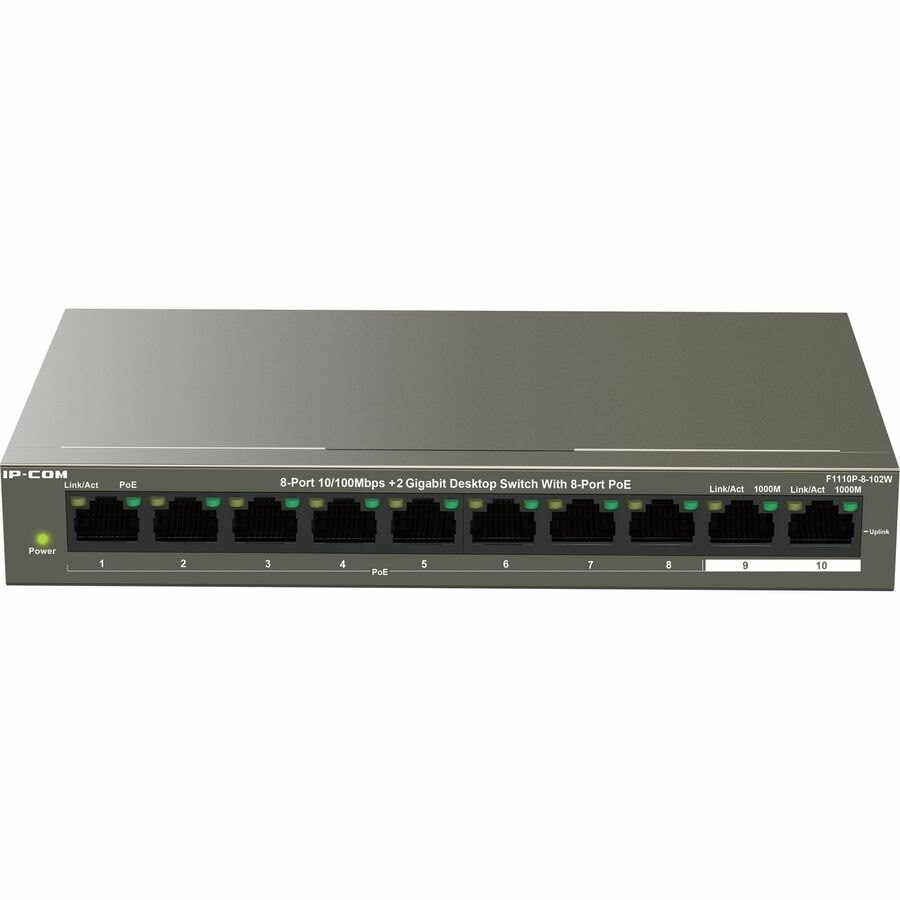

TEF1110P-8-102W is an 8-port 10/100Mbps+2-port gigabit desktop PoE switch developed by Tenda. It provides 8 10/100 BASE-TX RJ45 ports and 2 10/100/1000 BASE-T RJ45 ports. Ports 1-8 support IEEE 802.3at PoE standard with each port providing power of 15.4W, or support IEEE 802.3af PoE+ standard with each port providing power of 30W. The whole device can provide power of up to 99W. By using CAT5 twisted pairs, it can provide power and data transmission to APs, IP cameras, IP phones, and so on. In addition, all the ports support lightning protection of 6kV and long distance data transmission and powering of 250m, which decreases deployment difficulty and time thus decreases cost
- General Information
- Manufacturer
- Tenda Technology Inc
- Manufacturer Website Address
- http://www.tendaus.com
- Brand Name
- Tenda
- Product Type
- Ethernet Switch
- Interfaces/Ports
- Total Number of Network Ports
- 10
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Fast Ethernet PoE
- 2 x Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 99 W
- Input Voltage
- 120 V AC
- 230 V AC
- 51 V DC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- PoE
- AC/DC
- Physical Characteristics
- Height
- 1"
- Width
- 7"
- Depth
- 4.1"
- Miscellaneous
- Application/Usage
- Network
- Camera
- Wireless Access Point
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
