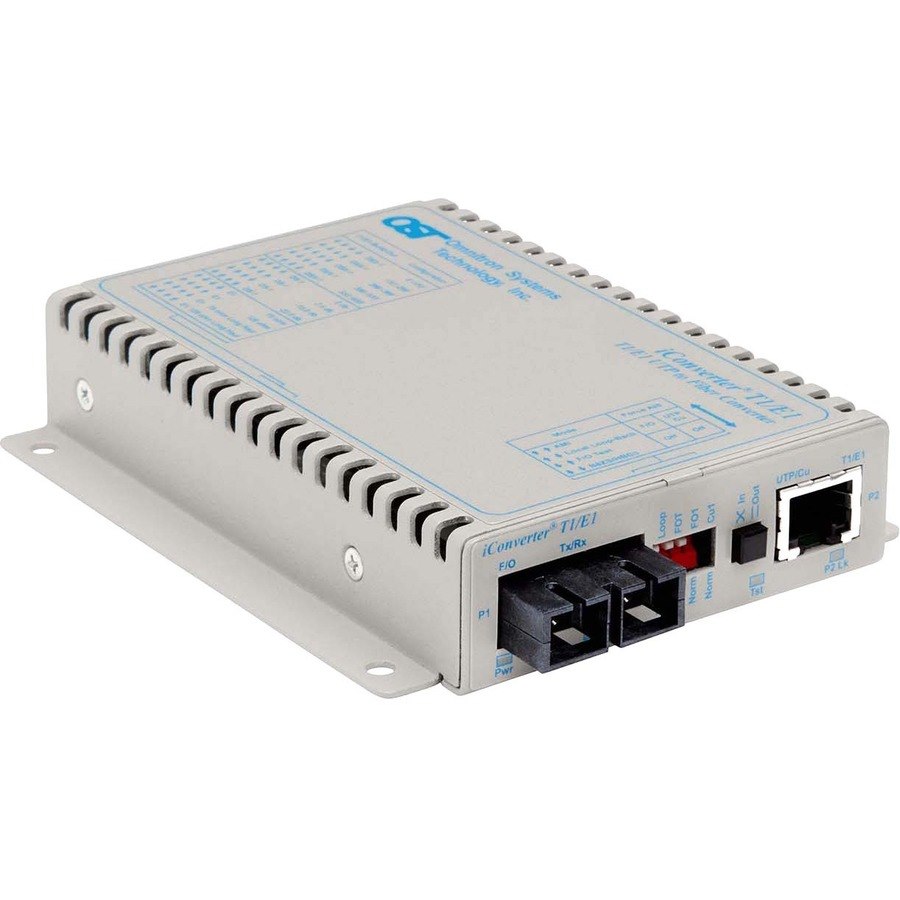

The iConverter T1/E1 media converter provides standard T1 (1.544Mbps) or E1 (2.048Mbps) copper-to-fiber conversion and can be used to extend the demarcation point between service provider and networking equipment. T1/E1 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.
Designed as a transparent repeater, the iConverter T1/E1 supports standard T1, E1 and Primary Rate Interface (PRI), voice or data. The converter also supports AMI, B8ZS and HDB3 line codes. DIP-switches provide easy configuration of T1/E1 line codes and line build-out.
The iConverter T1/E1 is available as a compact, unmanaged standalone unit with an RJ48 interface or as a chassis managed plug-in module with RJ48 or coax interface.
- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Series
- T1/E1
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Number of SC Ports
- 1
- SC Port Type
- Duplex
- Number of RJ-48 Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Distance Supported
- 5.01 km
- Network & Communication
- Carrier Supported
- T-carrier/E-carrier
- Network Technology
- T1/E1
- Power Description
- Input Voltage
- 120 V AC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- External
- Wall Mountable
- Height
- 1"
- Width
- 3.1"
- Depth
- 4.8"
- Weight (Approximate)
- 8 oz
- Miscellaneous
- Package Contents
- iConverter T1/E1 SC Multimode 5km Standalone US AC Powered
- US Power Supply - 120Volt / 60Hz
- User Manual
- Certifications & Standards
- Compliance: UL, CE, FCC Class A
- Environmentally Friendly
- Yes
- Country of Origin
- United States
