- General Information
- Manufacturer
- Nec Corporation
- Manufacturer Website Address
- http://www.necus.com
- Brand Name
- NEC
- Product Condition
- Refurbished
- Product Type
- DLP Projector

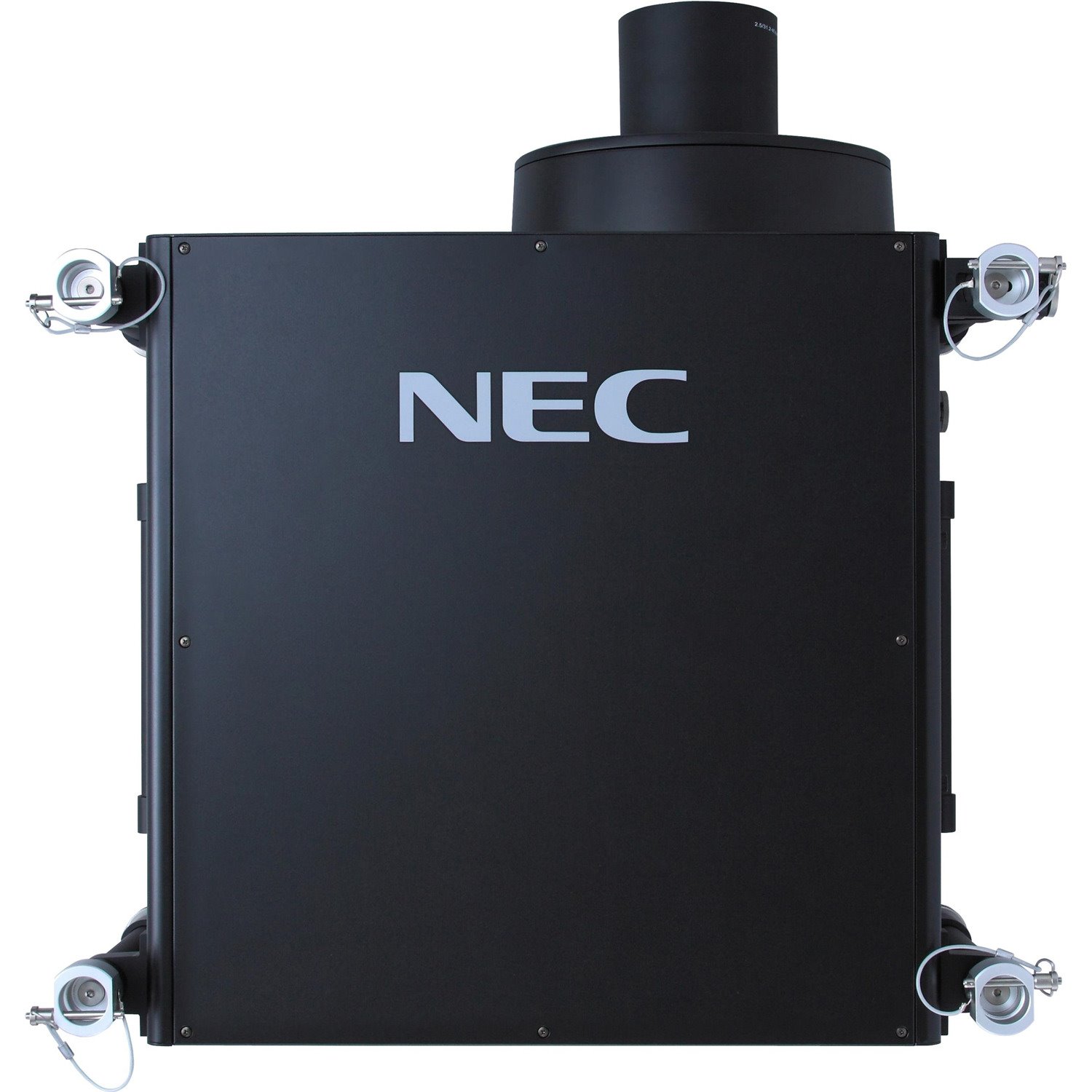

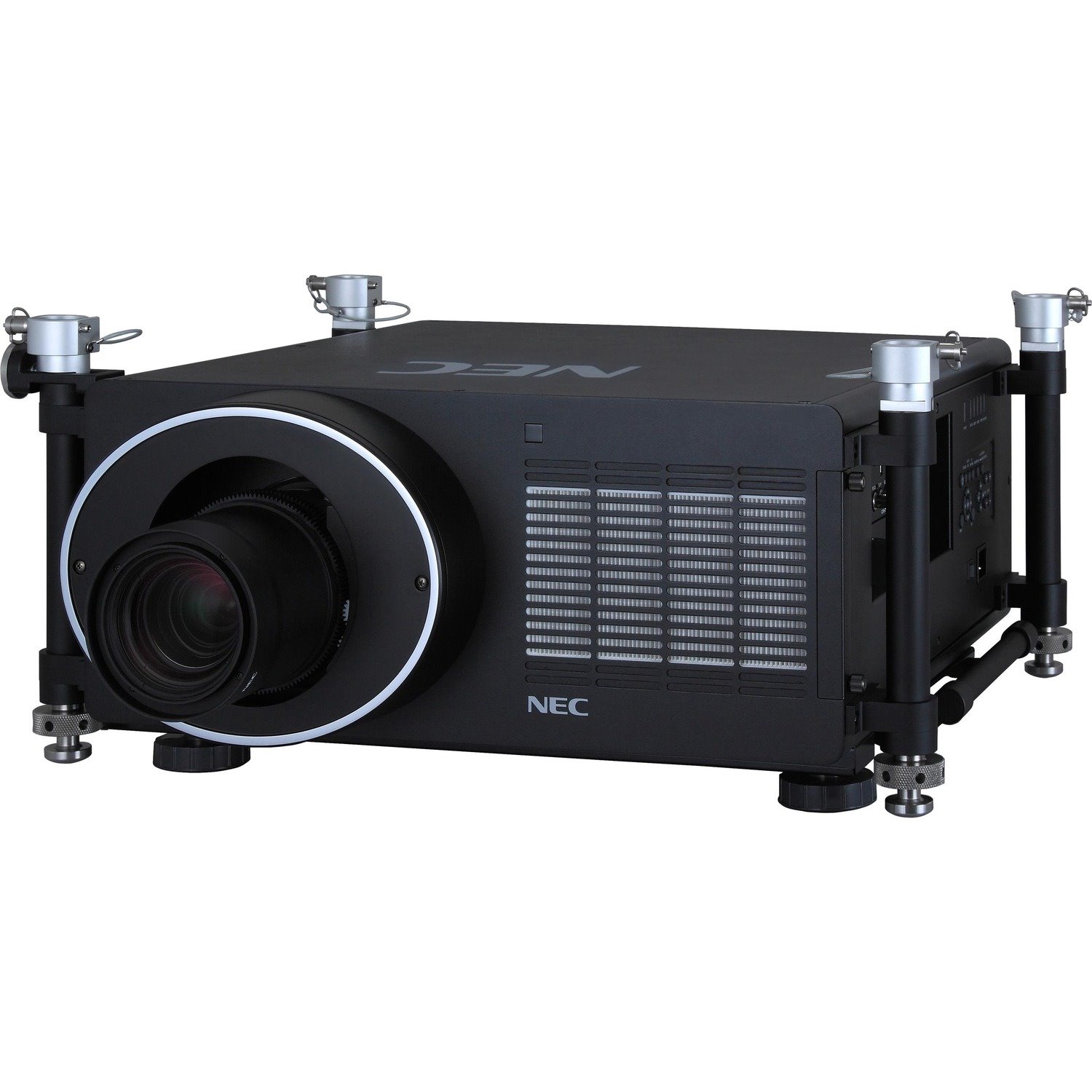

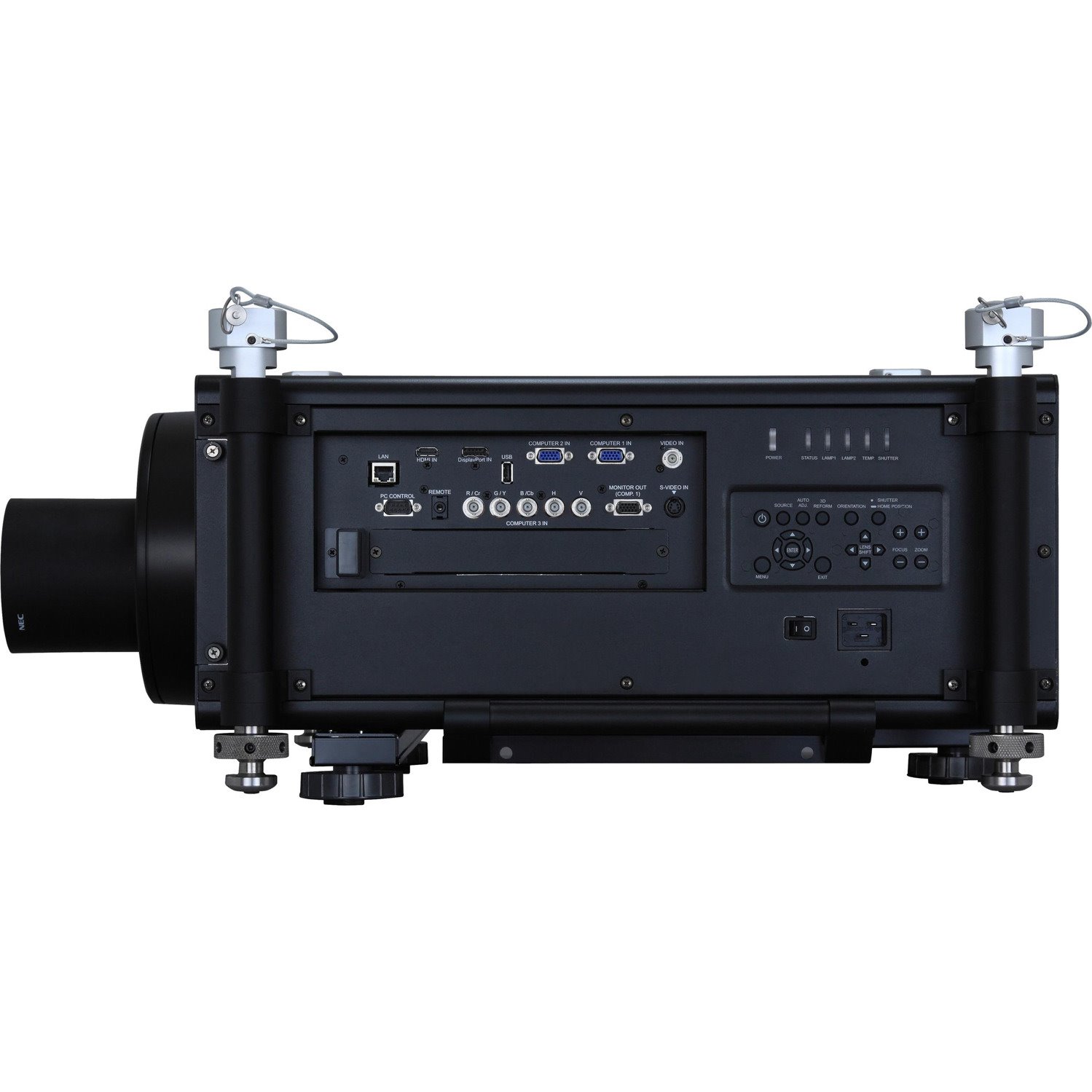

The 11,000-lumen NEC PH1000U professional installation projector offers a unique 3-chip DLP system that creates quality, larger-than-life images under virtually any operating condition to take on the most demanding integration projects. Perfect for large venues or high ambient lighting conditions, it supports multiple input cards and includes Open Pluggable Specification (OPS), the first industry-wide standardization in option slots to simplify installation, use and maintenance while offering input flexibility. Its Integrated Device Technology HQV™ is a high-performance video processing/scaling system designed for computer signals, standard or high-definition video. The PH1000U is ideal for higher education, house of worship, corporate and retail environments.
- 3-chip DLP with dual UHP lamps
- HD/SD SDI input card using OPS technology
- Stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 44,000 lumens
- Complete line of (5) bayonet-style lenses with built-in lens memory, powered zoom, focus and lens shift
- HQV™ technology delivers superior home theater video processing
- HDMI input connects you to high-definition sources
- Integrated RJ-45 and/or optional wireless LAN quickly connects to the LAN for control or image transmission using Windows Network Projector and/or Remote Desktop
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Warranty
- Parts Warranty/Labor
- 90 Day - Lamp
- Technical Information
- Projection Method
- Front
- Rear
- Ceiling
- Platform Supported
- PC
- Mac
- Display & Graphics
- Native Resolution
- 1920 x 1200
- Graphic Mode
- WUXGA
- Projection Lens
- Minimum Diagonal Image Size
- 80"
- Maximum Diagonal Image Size
- 41.67 ft
- Minimum Projection Distance
- 21.60"
- Maximum Projection Distance
- 243 ft
- Lamp
- Number of Lamps
- 2
- Lamp Type
- UHP
- Lamp Power
- 400 W
- Normal Mode Lamp Life
- 2000 Hour
- Economy Mode Lamp Life
- 2500 Hour
- Image
- Low Mode Brightness
- 8800 lm
- Standard Mode Brightness
- 11000 lm
- Contrast Ratio
- 2,000:1
- Vertical Keystone Correction
- -30°/+30°
- Horizontal Keystone Correction
- -35°/+35°
- Minimum Vertical Sync
- 48 Hz
- Maximum Vertical Sync
- 120 Hz
- Minimum Horizontal Sync
- 15 kHz
- Maximum Horizontal Sync
- 108 kHz
- Video
- Video Signal Format
- NTSC
- PAL
- SECAM
- Video Signal Standard
- HDTV
- Input Scan Format
- 1080p
- Output Scan Format
- 1125p
- Network & Communication
- Ethernet Technology
- Ethernet
- Interfaces/Ports
- DisplayPort
- Yes
- HDMI
- Yes
- Total Number of HDMI Ports
- 1
- USB
- Yes
- Composite Video
- Yes
- Component Video
- Yes
- Network (RJ-45)
- Yes
- S-Video
- Yes
- VGA In
- Yes
- VGA Out
- Yes
- Serial Port
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Operating Power Consumption
- 1006 W
- Standby Power Consumption
- 200 mW
- Physical Characteristics
- Product Color
- Black
- Form Factor
- Ceiling Mountable
- Floor Mountable
- Height
- 22"
- Width
- 22.7"
- Depth
- 9.3"
- Weight (Approximate)
- 87.10 lb
- Miscellaneous
- Package Contents
- 11,000-lumen Professional Installation Projector
- 1 x Power Cable
- 1 x Video Cable
- Certifications & Standards
- USA UL 60950-1
- FCC A
- Canada C-UL 60950-1
