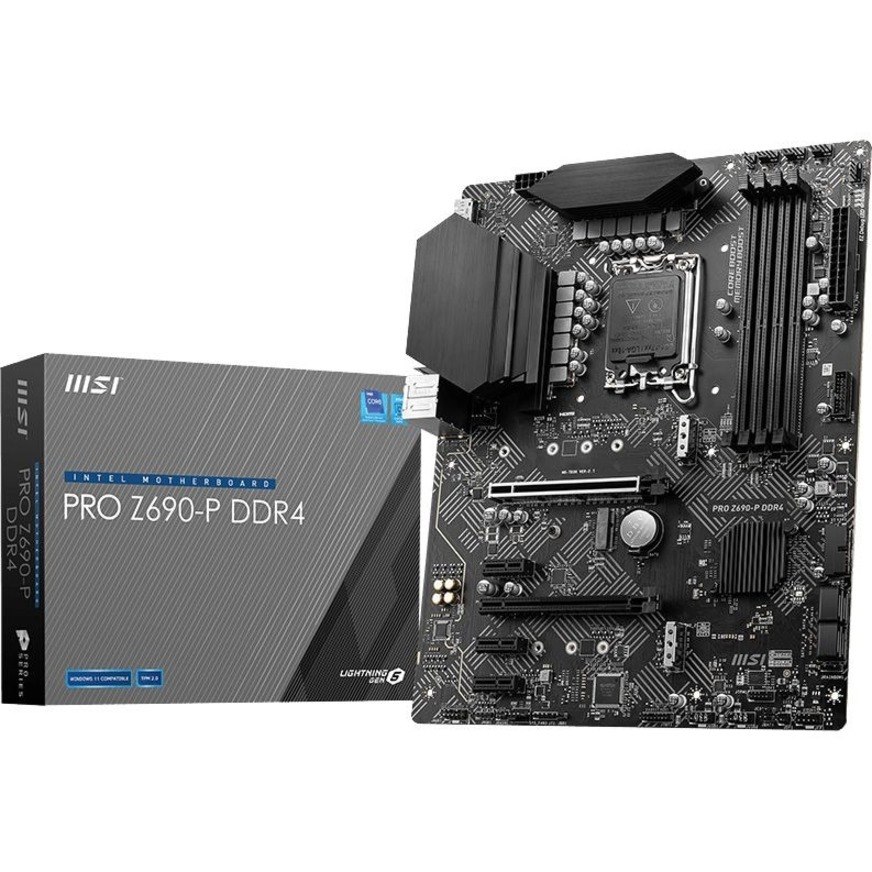

Buy MSI Z690-P DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

MSI Z690-P DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

Part: 2849645

$189.99

Availability

In Stock

General Information
- Manufacturer
- MSI
- Manufacturer Website Address
- http://www.msi.com
- Brand Name
- MSI
- Product Series
- PRO
- Product Type
- Desktop Motherboard

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

Warranty
- Limited Warranty
- 3 Year

Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z690
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 12th Gen
- Processor Supported
- Pentium Gold
- Celeron
- Core i5
- Core i7
- Core i9
- Core i3
- Multi GPU Supported
- CrossFire

Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 5000 MHz
- 4600 MHz
- 4000 MHz
- 2133 MHz
- 2666 MHz
- 3200 MHz
- 4400 MHz
- 4800 MHz
- 4266 MHz
- 4200 MHz
- 3800 MHz
- 3733 MHz
- 3600 MHz
- 3466 MHz
- 3400 MHz
- 3333 MHz
- 2933 MHz
- 2400 MHz
- Intel Optane Memory Ready
- Yes

I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10

Video
- Onboard Video
- CPU Dependent Video

Audio
- Audio Channels
- 7.1

Network & Communication
- 2.5Gigabit Ethernet
- Yes

I/O Expansions
- Total Number of Expansion Slots
- 5
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x1 Slots
- 3
- Number of PCI Express x16 Slots
- 2

Interfaces/Ports
- Total Number of USB Ports
- 7
- Number of USB 2.0 Ports
- 2
- Number of USB 3.2 Ports
- 1
- Number of USB 3.2 Gen 1 Ports
- 4
- S/PDIF
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1

Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 8
- Number of Onboard USB 2.0 Ports
- 4
- Number of Onboard USB 3.2 Ports
- 4

Physical Characteristics
- Form Factor
- ATX
- Width
- 12"
- Depth
- 9.6"

Miscellaneous
- Package Contents
- - PRO Z690-P DDR4 Desktop Motherboard
  - Quick Installation Guide
  - 2 x SATA Cables
  - M.2 Screw / Standoff Sets
  - Product Registration Card
  - I/O Shield
  - Driver DVD
- Country of Origin
- China
