- General Information
- Manufacturer
- The Bosch Group
- Manufacturer Website Address
- http://www.bosch.com
- Brand Name
- Electro-Voice
- Product Series
- ZX1i
- Product Type
- Speaker

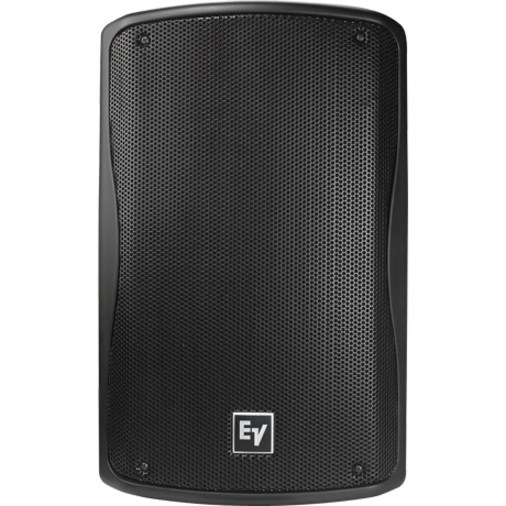

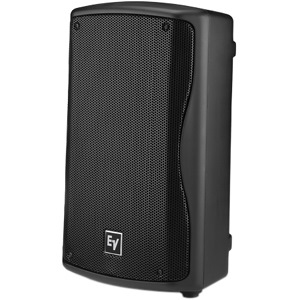

The Electro-Voice ZX1i is the new standard of no compromise audio performance and versatility in an easy to install, compact sound reinforcement package.
The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response without vent noise.
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 200 W
- PMPO Output Power
- 800 W
- Woofer Driver Size
- 8"
- Woofer Driver Material
- Cone
- Tweeter Driver Size
- 1"
- Minimum Frequency Response
- 48 Hz
- Maximum Frequency Response
- 20 kHz
- Impedance
- 8 Ohm
- Maximum Crossover Frequency
- 1.70 kHz
- Sound Pressure Level
- 123 dB
- Sensitivity
- 94 dB
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Steel
- Polymer
- Woofer Material
- Cone
- Durability
- Weather Resistant
- Height
- 17.8"
- Width
- 11.1"
- Depth
- 10.35"
- Weight (Approximate)
- 18.50 lb
- Miscellaneous
- Package Contents
- ZX1i-90 Speaker
- Mounting Bracket
- Application/Usage
- Indoor/Outdoor
- Certifications & Standards
- IEC 529
- IP44
- MIL810
