- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Type
- Video Switchbox

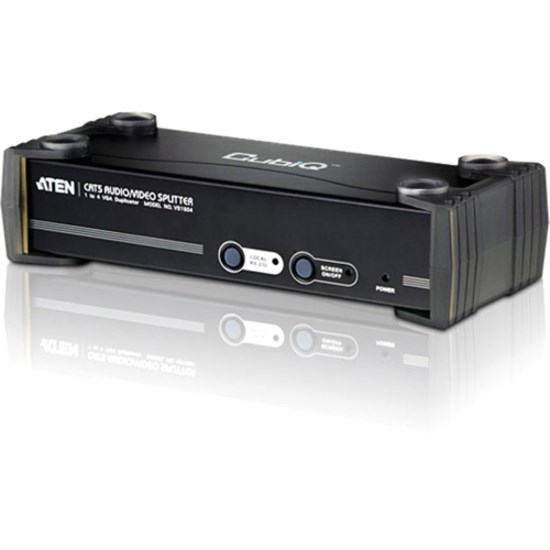

The ATEN VS1504T Cat 5 Audio/Video Splitter is a cost-effective and efficient way to send high quality audio and video content to multiple displays up to 150 m (500 ft) away from a single input source.
Cascadable to three levels, the VS1504T can support thousands of displays when combined in an installation with ATEN repeaters. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation, the VS1504 is ideal for any installation that requires multimedia content to be delivered to multiple destinations.
Ideal for:
- In-store or tradeshow digital signage
- Broadcasting information to public locations
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities
- Technical Information
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 1
- Device Supported
- Display
- Computer
- Digital Signage
- Number of Displays Supported
- 5
- Video
- Graphics Modes
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- VGA In
- Yes
- VGA Out
- Yes
- Serial Port
- Yes
- Connectivity (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Number of Connectivity (RJ-45) Ports
- 4
- Number of VGA Inputs
- 1
- Number of VGA Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Operating Distance
- 500 ft
- Physical Characteristics
- Height
- 2.3"
- Width
- 8.3"
- Depth
- 3.4"
- Weight (Approximate)
- 1.70 lb
- Miscellaneous
- Package Contents
- 4-Port VGA/Audio Cat 5e/6 Splitter with RS-232 - TAA Compliant
- 1 x VGA/Audio Cable (1.8 m)
- 1 x Power Adapter
- 1 x User Guide
- Application/Usage
- School
- Office
- TAA Compliant
- Yes
