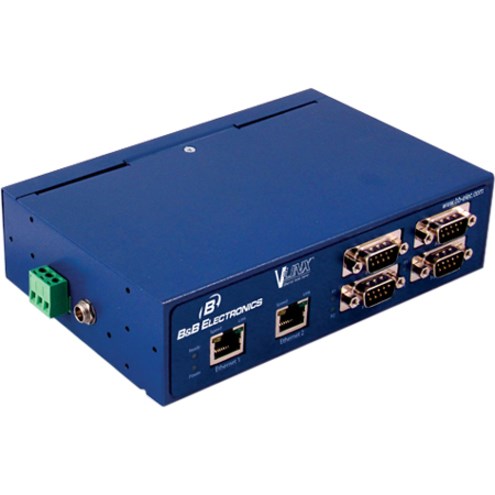

The MESR400 series Modbus Gateways bridge devices on Modbus serial networks (RS-232, RS-422 or RS-485) with those on Modbus TCP networks, allowing seamless integration. The serial ports can be accessed over a LAN or WAN using Direct IP Mode connections. Supporting up to 16 masters and 32 slaves, the gateways feature autodetecting10/100 copper and fiber optic options. The easy to use software is designed for Win XP, Vista, Win 7 and Windows 2003/2008 Server, features Modbus messaging priority control and allows management through multiple TCP/IP client sessions. Serial data rates up to 230 kbps ensure maximum network flexibility. MESR gateways are built for use in industrial environments, featuring a slim IP30 DIN rail mountable case. They operate from a range of DC power supply voltages and have pluggable terminal block connectors.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- B+B SmartWorx
- Product Line
- Vlinx
- Product Series
- MESR400
- Product Type
- Device Server
- Warranty
- Limited Warranty
- Lifetime
- Media & Performance
- Media Type Supported
- Twisted Pair
- Wireless Specifications
- Wireless LAN
- No
- ISM Band
- No
- UNII Band
- No
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Standard
- 10/100Base-TX
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Phone Line (RJ-11)
- No
- Network (RJ-11)
- No
- USB
- No
- Serial Port
- Yes
- Parallel Port
- No
- Centronics Port
- No
- Management Port
- No
- PoE (RJ-45) Port
- No
- Number of Network (RJ-45) Ports
- 2
- Number of Serial Ports
- 4
- Physical Characteristics
- Form Factor
- Rail-mountable
- Panel-mountable
- Height
- 1.8"
- Width
- 6.8"
- Depth
- 4.4"
- Weight (Approximate)
- 1.80 lb
- Miscellaneous
- Certifications & Standards
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3x
- FCC Part 15 Class A
- CE
- NEMA TS2 (MESR424D)
- Environmentally Friendly
- Yes
- Country of Origin
- United States
