- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Packaged Quantity
- 1 Pack
- Product Type
- Device Server

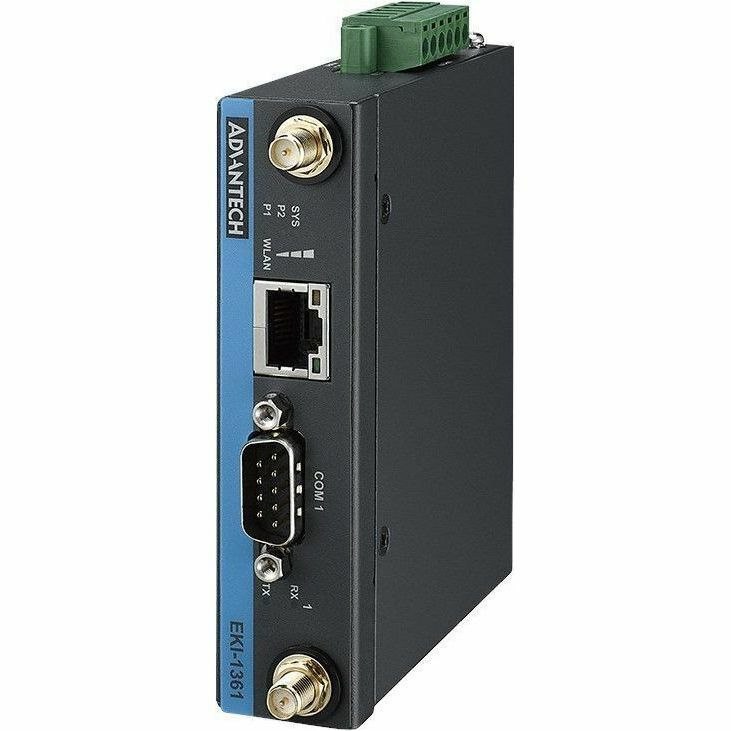

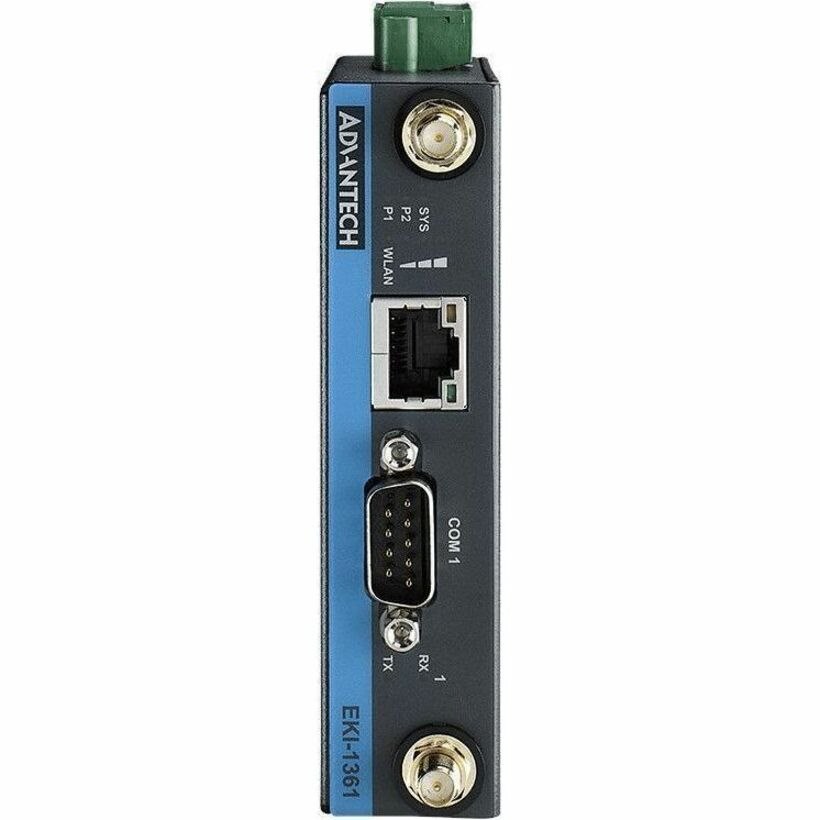

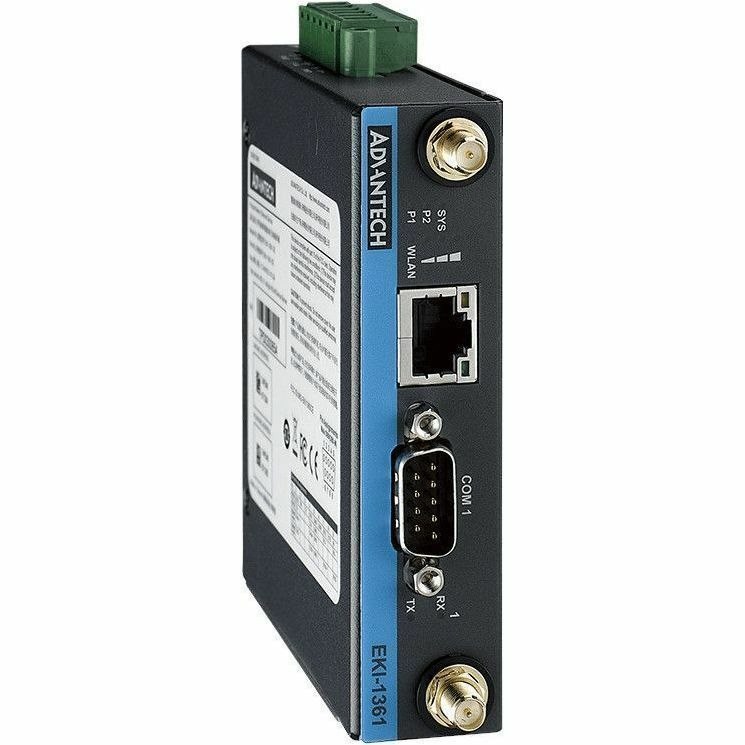

EKI-1361 and EKI-1362 wireless serial device servers bring RS-232/422/485 to wireless LAN or LAN. They allow nearly any device with serial ports to connect and share an WLAN network. EKI-1361 and EKI-1362 provide a quick, simple and cost-effective way to bring the advantages of remote management and data accessibility to thousands of devices that cannot connect to a network.
With EKI-1361 and EKI-1362, your existing serial devices can be used with the most popular operating systems on the market. There is no need to write special drivers for specific operating systems. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming. That saves a lot of cost and effort. In addition, you can actively request data or issue commands from the RS-232/422/485 side or wireless LAN side. This data can be sent bilaterally. Thus, the EKI-1361 and EKI-1362 are especially suitable for remote monitoring environments such as security systems, factory automaton, SCADA, transportation and more.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Connectivity Technology
- Wired
- Data Link Protocols
- UDP
- ARP
- HTTP
- TCP/IP
- IP Rating
- IP30
- Media & Performance
- Media Type Supported
- Twisted Pair
- Wireless Specifications
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n
- ISM Band
- Yes
- UNII Band
- Yes
- Network Band
- Dual Band
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Standard
- 10/100Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Total Number of Network Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- Number of Serial Ports
- 1
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Power Description
- Input Voltage
- 12 V DC
- 48 V DC
- Input Voltage Range
- 12 V DC - 48 V DC
- Power Consumption
- 2 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 4.1"
- Width
- 1"
- Depth
- 3.7"
- Weight (Approximate)
- 11.11 oz
- Miscellaneous
- Certifications & Standards
- CE
- FCC Part 15 Subpart B (Class B)
- RED
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
