Durable aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver workflow.

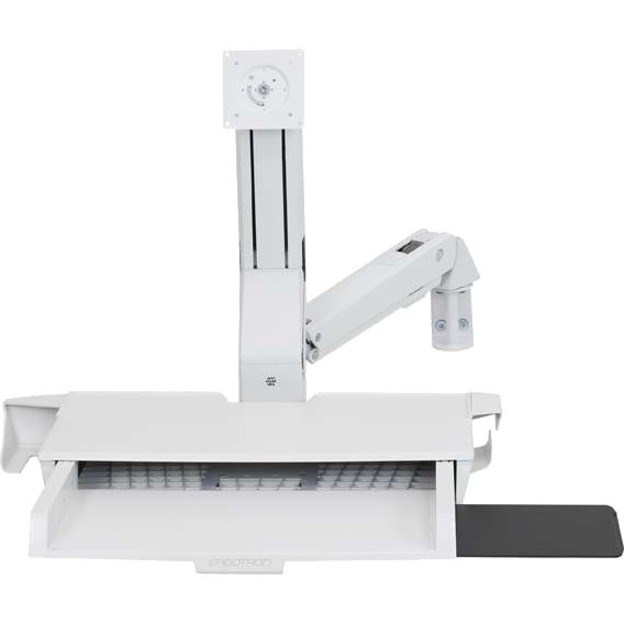

Holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
- General Information
- Manufacturer
- Ergotron, Inc
- Manufacturer Website Address
- http://www.ergotron.com
- Brand Name
- Ergotron
- Product Line
- StyleView
- Product Type
- Mounting Arm
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Monitor
- Bar Code Reader
- Keyboard
- Mouse
- Maximum Load Capacity
- 32 lb
- Maximum Screen Size Supported
- 24"
- Features
- Durable
- Cable Management
- Sturdy
- Flexible
- Foldable
- Tilt
- Pan
- Rotate
- Height Adjustable
- Yes
- Physical Characteristics
- Product Color
- White
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 75 x 75
- 100 x 100
- Product Material
- Aluminum
- Plastic
- Weight (Approximate)
- 32 lb
- Miscellaneous
- Additional Information
- Weight Capacity: display = 6-18 lbs (2.7-8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
- Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
- Monitor up/down tilt = +25°/-5°
- Patented CF™ lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
- Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
- Back-tilt keyboard tray adjustable from 0° to -10°
- Country of Origin
- China
