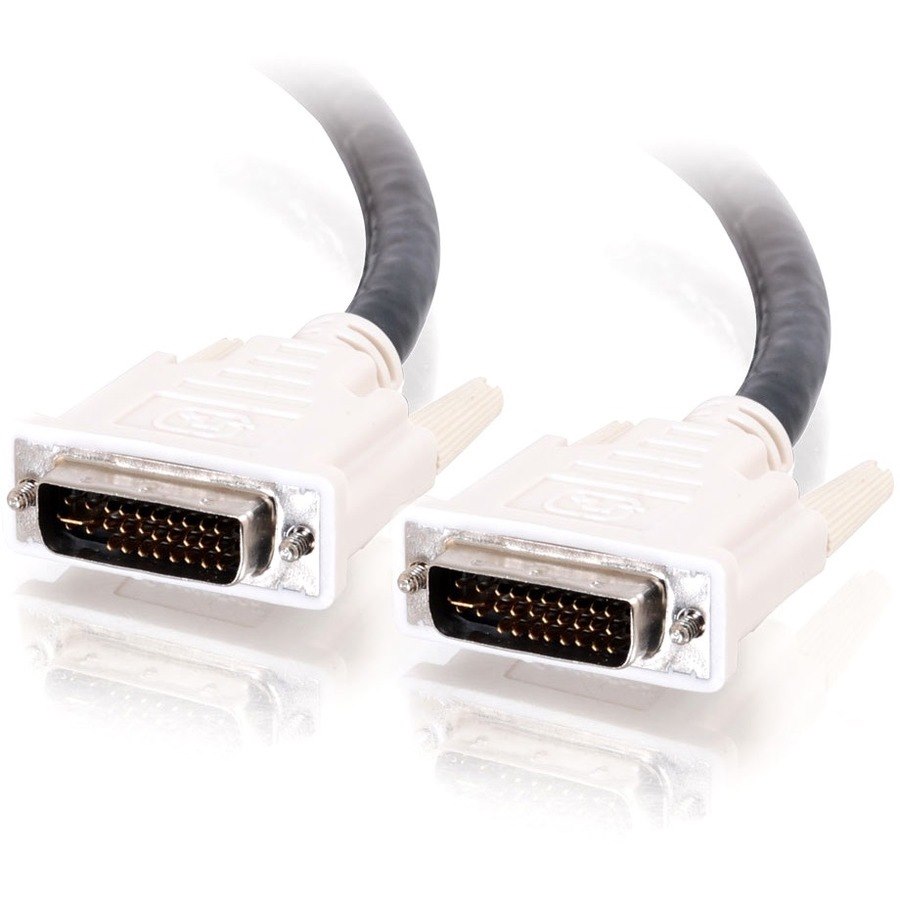

This precision-engineered cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-I dual link configuration provides enough bandwidth for resolutions up to 2560 x 1600. Three analog 30 AWG coaxial lines enable high speed analog transmission.
Tri-shielded undermold and braid shield protects against unwanted EMI/RFI interference. Each coax line is individually wrapped in foam-polyolefin insulation and overwrapped with a braided tinned copper shield. 28 AWG copper conductors are individually insulated in hard-density polypropylene to minimize crosstalk, and ensure high speed, error-free transmission. Gold-plated contacts provide full conductivity with no data loss. PC and Mac compatible cable supports hot-plugging of DVI display devices. PC-99 color-coded: white.
- General Information
- Manufacturer
- C2G
- Manufacturer Website Address
- http://www.cablestogo.com
- Brand Name
- C2G
- Product Type
- Video Cable
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Length
- 9.84 ft
- Connector Type on First End
- DVI-I Digital Video - Male
- Connector on First End Details
- 1 x 29-pin DVI-I Digital Video - Male
- Connector Type on Second End
- DVI-I Digital Video - Male
- Connector on Second End Details
- 1 x 29-pin DVI-I Digital Video - Male
- Conductor
- Copper
- Physical Characteristics
- Product Color
- Black
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Additional Information
- Copper conductors are individually insulated in hard-density polypropylene to minimize crosstalk, ensuring high-speed, error-free transmission
- Coaxial lines allow for high speed analog transmission
- Dual link digital signaling allows for high speed transmission up to 9.9Gbps
- Shielded undermold protects against unwanted EMI/RFI interference
- Supports hot plugging of DVI display devices
- Supports digital and analog signals
- Meets DVI DDWG Standard
- PC99 color-coded: white
- Compatibility
- Flat panel displays
- Digital CRT displays
- Projectors
- HDTV
- Country of Origin
- China
